TimeTec UHF 200HC
Perfect for JPJ ePlate RFID

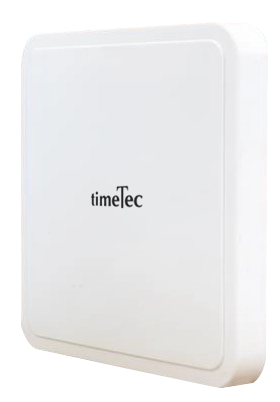

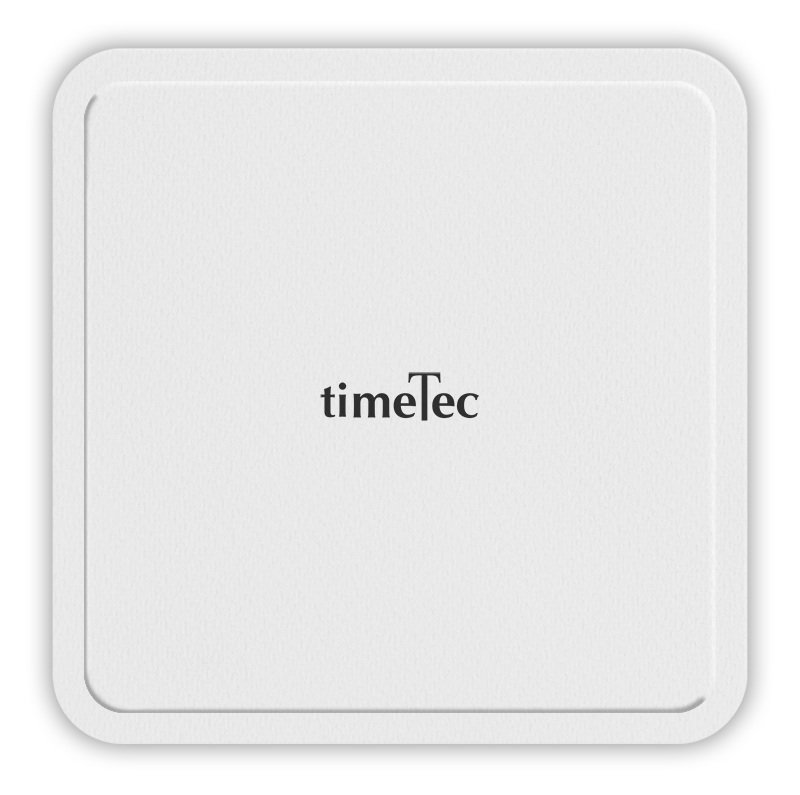

TimeTec UHF 200HC (TID) is a RS 232 reader is specially designed to read the signal from the embedded RFID chip of the JPJ ePlate or from the RFID sticker on the windshield, facilitating seamless vehicle identification and integration with TimeTec Smart Parking System to cover casual, season, valet parking and etc.

With a combination of the TimeTec UHF 200HC installed at the entry and exit points, along with the TimeTec Parking Management System (PMS), you can create a perfect hands-free smart parking system for car park users with TimeTec eWallet Direct payment method. The TimeTec UHF 200HC has a long lifespan, comes with a waterproof casing, and is suitable for outdoor installations, working efficiently even in adverse weather conditions.
Long Distance Detection
The reading range extends up to 10 meters (adjustable).
Two Working Modes
The default mode is 'always read,' but it can be configured to 'trigger read' as needed.
Waterproof Casing
IP65 dust tight & waterproof standard.
CE & FCC Certified Standards
The TimeTec UHF 200HC is CE and FCC internationally certified, ensuring it is safe for global installation.
SIRIM Certified (Malaysia)
SIRIM certified for use in the Malaysian market.
Perfect Parking Solution
Integrated with controllers and boom gate systems to provide a seamless parking system.
Integration with eWallet Direct System
Setel, TnG, and more, for a complete hands-free experience.
Integration with Exit Payment Kiosk
Offering optional payment methods with TnG cards and credit/debit cards.
Wiegand Optional
Anti-clone RFID feature for residential properties to improve safety.

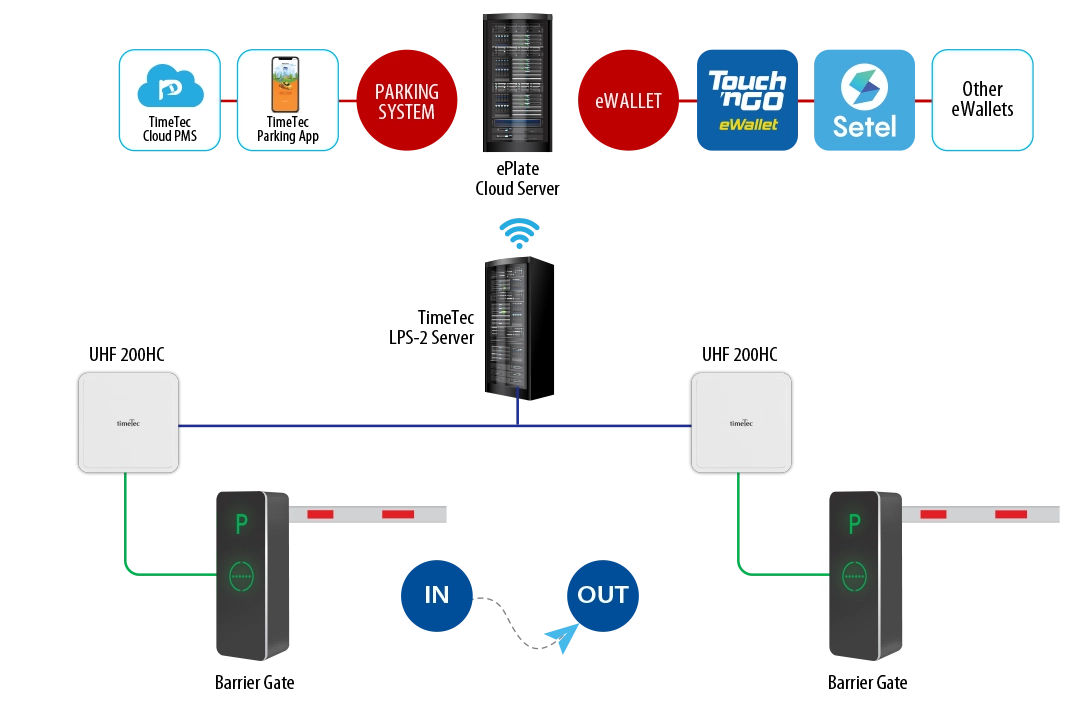

TimeTec ePlate RFID System
eWallet as Payment
SPECIFICATIONS

MODEL UHF 200HC
PHYSICAL CHARACTERISTICS
Dimensions (L X W x H), mm 260 x 40 x 260
Weight 1.2KG
RFID CHARACTERISTICS
Air Protocols EPC Class 1 Gen 2 (ISO 18000-6C)
Frequency USA: 902-928MHz FCC (NA, SA) , EU: 865-868MHz (ETSI)
Antenna gain ≤ 1.3:1
Antenna Ports One 9 dBi circularly polarized antenna
Output Power 5dBm-30dBm (±1dBm) adjustable
Work Mode Fixed / hop frequency optional
RFID PERFORMANCE
Max Read Rate ≥ 400 tags/s
Max Tag Read Distance ≥ 10m, 9 dBi antenna
COMMUNICATION INTERFACE
Communications UART serial port (RS232), Baud rate 9600 ~115200bps
Connector Interface RJ45 (10/100 Base-T Ethernet), RS-232 , GPIO 4Pin(GND RND O1 IN1)
POWER SUPPLY
DC Supply DC 12V/3A
Protection level LP65
WORKING ENVIRONMENT
Operating Temp -20° C to + 60° C
Storage Temp -40° C - + 80° C
Humidity 5 - 90% non-condensing (+25° C)
SHELL MATERIAL
Shell Material Aluminum + PC
APPLICATION INTERFACE
Host API C, C#/ .NET, Java
