TimeTec HC-1
Handheld RFID & OCR Reader

Android
4G

WiFi
GPS

UHF
1D Barcode

2D Barcode
Camera

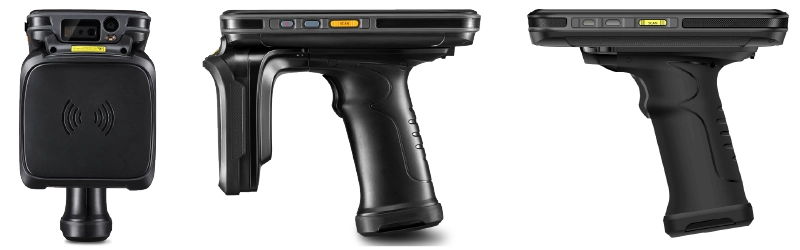

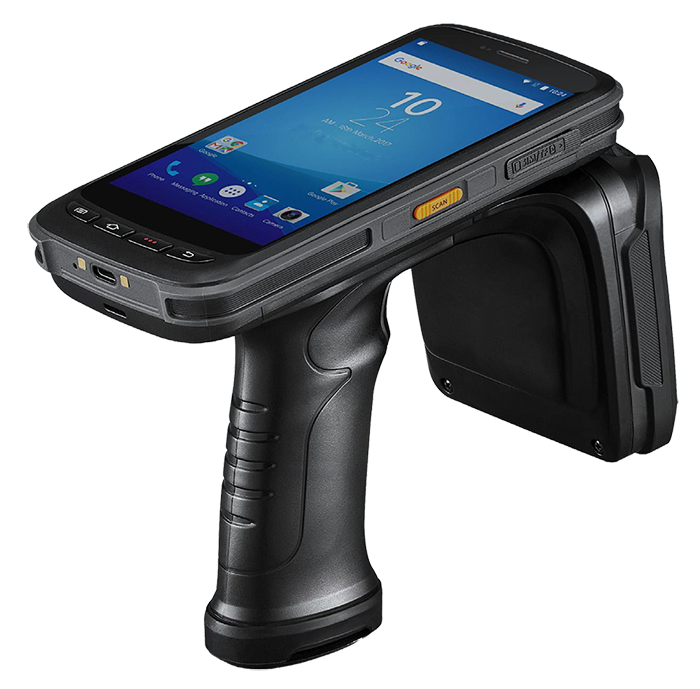

TimeTec HC-1 is a SIRIM certified ideal rugged Android mobile reader specifically designed to read RFID tags for Malaysia’s JPJePlate. It is built with a powerful processor, an 8000mAh battery, and robust UHF RFID capabilities. The device can be equipped with an Impinj E710 or R2000 circularly polarized antenna. Its ability to read tags in bulk from long distances makes it suitable for both authorities and commercial applications, including enforcement, compliance, fleet management, parking management, and vehicle registration.

TimeTec HC-1 also comes pre-installed with the customizable and Enforcement App, Officer App or Installer App which can be configured for various tasks such as JPJ ePlate validation, issuing compounds and etc. Additionally, the device is equipped with GPS for location tracking and a cloud-based, high-accuracy Optical Character Recognition (OCR) function for reading car plate numbers. The HC series Apps are integrated with HC administrative cloud-based management system, hosted on the Amazon Web Services (AWS) platform in Malaysia, making it easy to deploy.
Performance
Operating System Abdroid 11/13; 90-days security updatesG.Zero- Touch, FOTA, Soti Mobicontrol, SafeUEM Supported
CPU Cortex-A53 2.3 GHz Octa-core
RAM+ ROM 3GB + 32GB/ 4GB + 64GB (optional)
Expansion Supports up to 256 GB Micto SD(TF) card
Communication
WLAN IEEE802.11a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna
WWAN 2G: GSM850/ GSM900/ DCS1800/ PCS1900
3G: WCDMA: B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA:A/F
4G: B1/ B2/ B3/ B4/ B5/ B7/ B8/ B12/ B17/ B20/ B28A/ B28B/ B34/ B38/ B39/ B40/ B41
Physical Characteristics
Dimensions 164.2 x 80.0 x 24.3mm/6.46 x 3.15x 0.96in.
Weight 654g / 23.07oz
Display 5.2" IPS LTPS 1920 x1080
Touch Panel Coming Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power Li-ion, rechargeable, 8000 mAh
Standby: over 500 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Expansion Slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Interfaces USB 2.0 Type-C, OTG, Type-C headphones supported
Sensors Light sensor, proximity sensor, gravity sensor
Notification Sound, LED indicator
Audio 1 microphone; 1 speaker; receiver
Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
User Environment
Operating Temp. -4 °F to 122 °F / -20 °C to 50°C
Storage Temp. -40 °F to 158 °F / -40 °C to 70°C
Humidity 5% RH - 95% RH non condensing
Drop Specification Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
Tumble Specification 1000 x 0.5m/ 1.64 ft. falls at room temperature
Sealing IP65 per IEC sealing specifications
ESD ±15 KV air discharge, ±6 KV conductive discharge
Developing Environment
SDK Software Development Kit
Language Java
Tool Eclipse/ Android Studio
Data Collection
Camera
Camera 13 MP Autofocus with flash
RFID (optional)
UHF
Engine CM710-1 module based on Impinj E710
CM2000-1 module based on Impinj Indy R2000
Frequency 919 - 923 MHz
Protocol EPC C1 GEN2 / ISO18000-6C
Antenna Circular polarization (4dBi)
Power 1 W (30 dBm, +5 dBm to +30 dBm adjustable)
2 W Optional (33 dBm, for Latin America, etc.)
Max Read Range

Fastest Read Rate		 Impinj E710 chips:
26m (Impinj) MR6 tag, size 70 x 15mm)

28m (Impinj M750 tag, size 70 x 15mm)
30m (Alien H3 Anti-Metal tag, size 130 x 42mm)
1300+ tags/sec (circular polarization)
*Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environments.
Barcode Scanning (optional)
1D Linear Scanner Honeywell: N4313
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Imager Scanner Zebra: SE4710/ SE4750SR/ SE4750MR/ SE4750DP;
Honeywell; N6603; CM60
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Accessories
Standard AC Adaptor, USB Cable, etc.
Optional Cradle, Holster, etc.
*For detailed specification, please check Accessory Guide.
