Smart Lock | TimeTec
Integrate TimeTec Access with FingerTec Smart Lock Series
Simple, Sleek & Smart

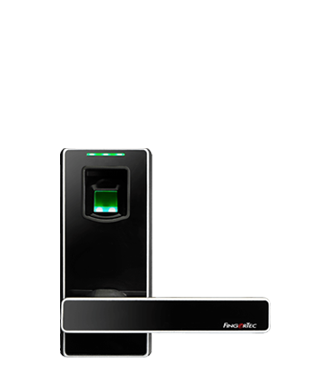

ML-10B

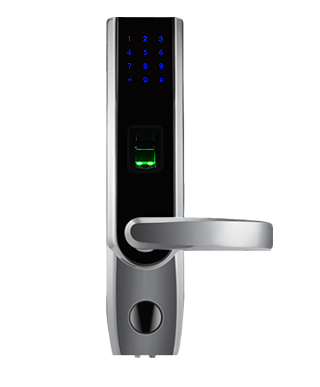

TL-40B

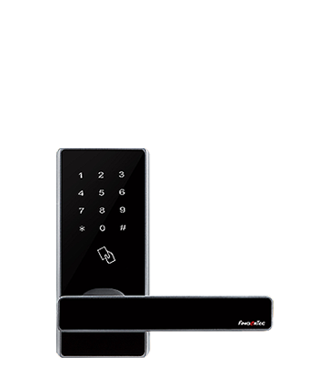

DL-30B
App Guide
airbnb Guide
Faq
FingerTec Smart Lock is a smart mechanical door lock system designed to fit doors built for houses, restricted compounds or even individual rooms. Replace your conventional key and door knobs to FingerTec Smart Lock for a more secure and convenient prospect.

FingerTec Smart Lock comes with 5 unlocking credential options depending on the models. As such, the options are fingerprint, mechanical key, password, card or smartphone access through Bluetooth communication. Moreover, this sleek door lock is also embedded with an independent, patent protected clutch motor design which provides you with the option to set 3 different User Group Types: Admin, Regular Users or Temporary Users to access your homes and office areas effectively.

What's more, FingerTec Smart Lock Bluetooth connectivity works best when combined with TimeTec Access, i-TimeTec App and i-Neighbour App as it eases door unlocking and management of facility booking within a neighbourhood respectively.

Leave the traditional door lock behind and heighten your security effortlessly with the sleek and robust FingerTec Smart Lock.
3 User Group Types
Gain better access control management with FingerTec Smart Lock User Group types: Admins, Regular Users and Temporary Users.
5 Unlocking Credentials
Unlock doors using fingerprint, mechanical key, password, card or your smartphone's Bluetooth connection. (Note: Type of credentials listed depend on the models selected.)
User Capacity
Register as many users as you desire through a smartphone. (Note: Fingerprint and card/password option capacity depends on the models selected.)
Normally Open Type
This particular setting caters for offices or areas with regular visitor access. Thereby, reducing instances resulting in entrances being "bottlenecked".
Optimal Battery Life
Only 4 AA alkaline batteries are required to operate over 6000 accesses. Hence, approximately a year of use before you are faced with the low-battery warning indication.
Reversible Left-Right Open
ML-10B, TL-40B & DL-30B are designed with a sturdy bar latch alongside an interchangeable handle which allows the door to be easily customized as a left-open or right-open door.
Downloadable App
Android and iOS Apps for i-Neighbour and i-TimeTec are available for those who prefer to use a smartphone in terms of door access.
Emergency Override Key
In case of an emergency like losing a smartphone. Please note that all models come with a concealed override key for accessing the door.

Brochure: Video Guide:
User Manual: Quick Start Guide:
Installation Guide: Installation Template:
(Left) (Right)
Brochure: Installation Guide:
User Manual: Quick Start Guide:
Installation Template:
(Left) (Right)

Brochure: Installation Guide:
User Manual: Quick Start Guide:
Installation Template:
(Left) (Right)

  ML-10B TL-40B DL-30B
SURFACE FINISHING Zinc alloy Zinc alloy Zinc alloy
TYPE OF SCANNER/ANTENA Optical fingerprint scanner Optical fingerprint scanner RFID
ALGORITHM Biobridge VX 10.0 Biobridge VX 10.0 Biobridge VX 10.0
RESOLUTION OF SCANNER (dpi) 560 560 N/A
PRODUCT DIMENSION
(L X W X H), mm
Front panel: 155 x 69x 35 (without handle)
Back panel: 155 x 69 x 25 (without handle)
Front panel: 310 x 72 x 30 (without handle)
Back panel: 310 x 72 x 34 (without handle)
Front panel: 155 x 69 x 26 (without handle)
Back panel: 155 x 69 x 35 (without handle)
Thickness of door (mm) 30-38 (optional)
39-46 (standard)
47-54 (standard)
55-60 (optional)
35-50 (standard)
50-65 (standard)
30-38 (optional)
39-46 (standard)
47-54 (standard)
55-60 (optional)
Door latch type Single latch (ML-10B)
Double latches (ML-10DB)
Mortise design with single latch and two deadbolts Single deadbolt
Inner lock switch Yes Yes Yes
STORAGE
Fingerprint templates Admin (10),
Normal users (60),
Temporary users (20)
100 N/A
Password N/A 100 100
Card N/A 100 100
Bluetooth Unlimited users for TimeTec Security App & i-Neighbour App Unlimited users for TimeTec Security App & i-Neighbour App Unlimited users for TimeTec Security App & i-Neighbour App
FINGERPRINT & VERIFICATION
Fingerprint 1: N 1: N N/A
Recommended fingerprint per user ID 2 2 N/A
Fingerprint placement Any angle Any angle N/A
Verification time (sec) < 1 < 1 N/A
FAR (%) < 0.0001 < 0.0001 N/A
FRR (%) < 0.1 < 0.1 N/A
BLUETOOTH VERIFICATION
Communication Bluetooth 4.0 Bluetooth 4.0 Bluetooth 4.0
OPERATING ENVIRONMENT
Voice guidance N/A Yes Yes
Temperature (°C) - 20 to – 55 - 20 to – 55 - 20 to – 55
Humidity (%) 20 ~ 80 20 ~ 80 20 ~ 80
Power input 4 x1.5v AA battery for 6000 operations 4 x1.5v AA battery for 6000 operations 4 x1.5v AA battery for 6000 operations
Power consumption – static (µA) < 35 < 35 < 35
Power consumption – activity (mA) < 135 < 135 < 135
Power consumption – driving (mA) < 200 < 200 < 200
Antistatic voltage (V) > 1500 > 1500 > 1500
Low battery warning voltage (V) < 4.5 < 4.5 < 4.5
BACKUP UNLOCK MECHANISM Battery & mechanical key Battery & mechanical key Battery & mechanical key
MOBILE OS Android 4.0.2 and above, iOS 8.0 and above Android 4.0.2 and above, iOS 8.0 and above Android 4.0.2 and above, iOS 8.0 and above
APP LANGUAGE Arabic, Chinese Simplified and Traditional, English, Hindi, Indonesian, Malay, Nepali, Spanish, Thai, Turkish, Vietnamese.
Other languages are available upon request
Arabic, Chinese Simplified and Traditional, English, Hindi, Indonesian, Malay, Nepali, Spanish, Thai, Turkish, Vietnamese.
Other languages are available upon request
Arabic, Chinese Simplified and Traditional, English, Hindi, Indonesian, Malay, Nepali, Spanish, Thai, Turkish, Vietnamese.
Other languages are available upon request
