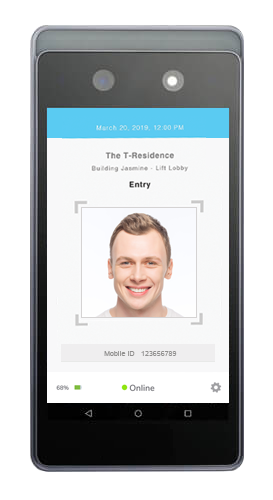

TimeTec QF Plus

Wireless QR Code & Facial Recognition Terminal
TimeTec QF Plus is another great addition to enhance TimeTec cloud solutions. It is an Android terminal preloaded with the mobile QF Master App, which performs face recognition or QR code verification. When the QF Plus is paired with the TimeTec BLE-2 or BLE-5 controller via Bluetooth communication, it becomes a new breed of cloud access control system.
QR Code verification
Support machine-readable image as credential
Face Recognition
Latest visible light facial recognition technology
Large Capacity
Store up to 10,000 face templates and 1 million transaction logs
Pairs with BLE-2/5
Perfectly paired with TimeTec Bluetooth Low Energy (BLE) Technology controller
Anti Passback
Prevent users to second enter the same security controlled area
WiFi or 4G
WiFi or 4G wireless connectable, clean installation and no wiring required
Elegance Design
A sophisticated, compact and slim model devised to fit dimensions of door frame installation
TimeTec Cloud
Seamless integration with multiple TimeTec cloud solutions
Desktop/Wall-Mount
Come with a standard desktop stand and a wall mounting back plate

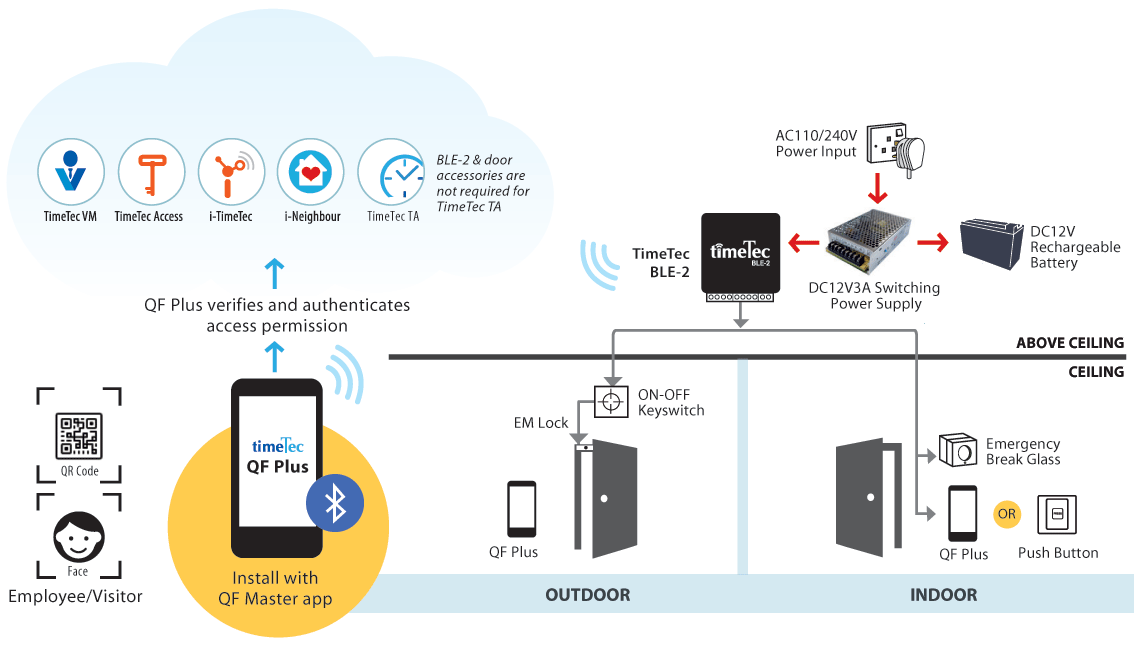

SYSTEM DIAGRAM

Face Recognition

QR Code Verification
TimeTec QF Plus
SPECIFICATIONS TimeTec QF Plus
Surface finishing Acrylonitrile Butadiene Styrene (ABS)
Type of scanner 2MP Dual Camera
OS Android 8.1
CPU Quad-core, 1.5GHz
Memory RAM 2GB / ROM 16GB
Algorithm Face: BioBridge VX 9.0
Push Technology Yes
Dimensions 158 * 74 * 15.6mm
Templates, Transaction 10,000 face templates, 1,000,000 transaction
ENROLLMENT & VERIFICATION
Methods Face (1:N) and QR Code
Verification time (sec) Face < 1, QR Code < 1
FAR (%), FRR Face: < 0.01, Face: <0.1
COMMUNICATIONS
Wi-Fi 2.4GHz, 5GHz, 802.11a / b / g / n
Bluetooth 4.0
4G Wireless Broadband Yes
USB USB 2.0
GPS GPS / A-GPS
MULTIMEDIA
Voice Yes
Display 720 x 1280, IPS touch LCD
Photo ID Yes
Speaker 90DB (10cm distance)
Microphone 1m clear voice pickup
Short messaging Yes
Day light saving timer Yes
OPERATING ENVIRONMENT
Power 12V 2A
Operating Temperature -10°C - 50°C
Operating Humidity 20% - 80%RH
TIME ATTENDANCE
Work codes Yes
Fast transaction checking Yes
ACCESS CONTROL
Door Controller TimeTec BLE-2
EM Lock driving output DC12V relay output
Lock output type NO/NC
Antipassback Yes
Transaction records/Event capacity Unlimited, stored in cloud server
General
CLOUD software i-TimeTec, TimeTec Access, TimeTec VMS, TimeTec TA, i-Neighbour
CERTIFICATIONS
CE, FCC, RoHS
  Note: Specifications are subject to change without prior notice.
BLE 2

SPECIFICATIONS TimeTec BLE-2
CHANNELS 3 FORM C Relay output, NO/NC selected via jumper Wiegand 26-bit input
DIMENSION (L X W X H), mm 85 x 96 x 33
POWER INPUT DC12V
WORKING TEMPERATURE (°C) 0-45
HUMIDITY (%) 20-80
CARD STORAGE (PCS) 1,000
COMMUNICATION Bluetooth Low Energy (BLE) 4.2, Wiegand 26-bit input
BLUETOOTH ENCRYPTION 64-bit TimeTec Proprietary
EFFECTIVE DISTANCE (m) < 5m for Mobile App
LED INDICATOR Available
TRANSACTION RECORDS Unlimited, stored in cloud server
EVENT CAPACITY Unlimited, stored in cloud server
MOBILE OS Android 4.0.2 and above, iOS 8.0 and above
APP & CLOUD i-TimeTec, TimeTec Access, TimeTec VMS, i-Neighbour, QR Master, Face Master
