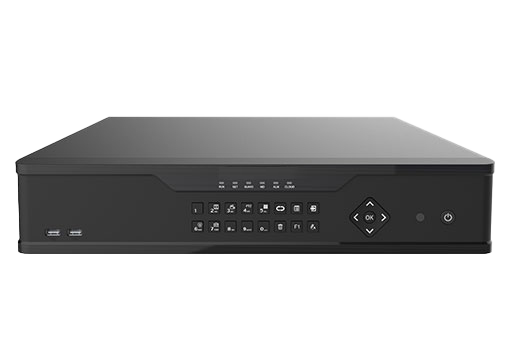

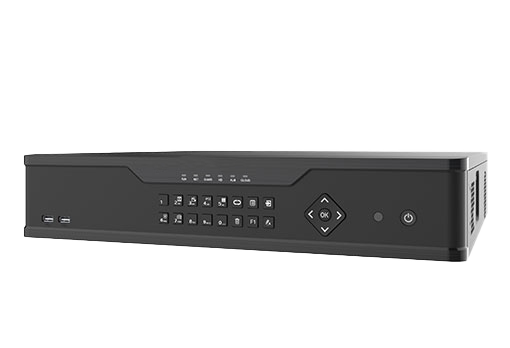

NVR308-X Series
Network Video Recorder
  1. Support Ultra H.265/H.265/H.264 video formats
  2. 16/32/64‑channel input
  3. Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  4. Support 2‑ch HDMI, 1‑ch VGA. HDMI1 and HDMI2 up to 4K (3840x2160) resolution
  5. HDMI1, HDMI2, VGA independent outputs provided
  6. Up to 12 Megapixels resolution recording
  7. Support RAID 0, 1, 5, 6, 10
  1. Various fisheye dewarping modes for live view and playback for both web interface and GUI
  2. Support N+1 Hot spare
  3. Support for 12V Power output
  4. ANR technology to enhance the storage reliability when the network is disconnected
  5. Support cloud upgrade
  6. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
MODEL NVR308-X Series
Decoding
DecodingFormat Ultra 265, H.265, H.264
DecodingCapability NVR308‑16X:2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30 NVR308‑64X:2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 NVR308‑32X:2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25
AudioCompression G.711A, G.711U
Network
IncomingBandwidth 384Mbps
OutgoingBandwidth 384Mbps
RemoteUsers 128
Protocols TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6
Browser(Plugin) Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/AudioInput
IPVideoInput NVR308‑16X:16‑ch NVR308‑64X:64‑ch NVR308‑32X:32‑ch
RCAAudioInput 1‑ch
Video/AudioOutput
HDMIOutput HDMI1/HDMI2(HDMI audio output is not supported):4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGAOutput VGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCAAudioOutput 1‑ch
LiveviewDisplay NVR308‑16X:1/4/6/8/9/16 NVR308‑64X:VGA:1/4/6/8/9/16/25/36,
HDMI1/HDMI2:1/4/6/8/9/16/25/36/64 NVR308‑32X:1/4/6/8/9/16/25/36
CorridorModeScreen NVR308‑16X:3/4/5/7/9/10/12/16 NVR308‑64X/NVR308‑32X:3/4/5/7/9/10/12/16/32
Two-wayAudio
Two-wayAudio 1‑ch, RCA(Using the audio input and output)
Snapshot
FTP/Schedule/EventSnapshot NVR308‑16X:16‑ch snapshot, up to 4K resolution NVR308‑64X:64‑ch snapshot, up to 4K resolution NVR308‑32X:32‑ch snapshot, up to 4K resolution
Recording
RecordingResolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
SynchronousPlaybackinLocal 16‑ch
Smart
VCADetectionbyIPC Face Detection;Vehicle Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring);Video Metadata;Traffic Monitoring
VCASearch Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report
SmartbyIPC NVR308‑16X:All channels (up to 8 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring NVR308‑64X:All channels (up to 24 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring NVR308‑32X:All channels (up to 16 images/s in total)Face Detection, Vehicle Detection, SIP, UMD, Temperature Detection
Alarm
GeneralAlarm Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
AlertAlarm IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal
GUILanguage
GUILanguage 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
HardDisk
SATA 8 SATA Interfaces
Capacity Up to 12TB for each HDD(The maximum HDD capacity varies with environment temperature)
DiskArrayType RAID 0, 1, 5, 6, 10
ExternalInterface
NetworkInterface 2 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface
USB Front panel: 2 x USB2.0;Rear panel: 1 x USB3.0
RS485 1
RS232 1
AlarmIn 16‑ch
AlarmOut 4‑ch
eSATA 1
PowerOutput 12V
PowerSupply AC 100 ～ 240 V
PowerSwitch Support
WorkingEnvironment
WorkingTemperature ‑10 °C ~ 55 °C (14 °F ~ 131 °F)
WorkingHumidity ≤ 90% RH (non‑condensing)
PowerConsumption(withoutHDD) ≤ 25W
Dimensions
Weight(withoutHDD) ≤ 5.7Kg (12.57lb)
Dimensions 442mm ×426mm× 89mm (17.4"×16.8"×3.5")
Certification
Certification CE;FCC;UL;RoHS;WEEE
CE EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC Part15 Subpart B
