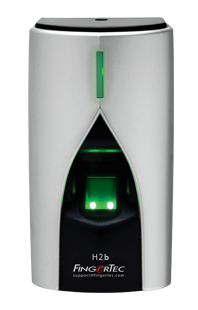

FingerTec H2b is an innovative biometric fingerprint reader for access control application. It is loaded with an advanced Biobridge fingerprint algorithm for reliability, precision and excellent biometrics matching speed.

Install FingerTec H2b standalone or connect it with a third party panel that supports 26-bit Wiegand format. With H2b, enroll users easily with administrator card for standalone installation and transfer fingerprint templates from ot her FingerTec devices to H2b through TCP/IP or RS485, if the connection is available.

FingerTec H2b supports Bluetooth communication in mobile App management, for access control, user information registration and device set ups.
Key Features
Fast and Accurate Fingerprint Algorithm
One-touch-One-second recognition. Stores an impressive 1500 fingerprint templates, 10000 cards and 100000 transactions
USB Numeric Keypad for Command Input
Plug the keypad to H2b to enroll and delete users, or reset the terminal to its default settings
Easy Data Management
All you need is a USB flash disk to transfer transaction logs from H2b to your computer

Normally Open Type
Be vigilant and install external alarm with H2b, preparation for emergencies like break-ins, fire emergencies and etc.
Complete Access Control Features
H2b has complete access control features interface for 3rd party device integration such as electric magnetic lock, door sensor, exit button, alarm and doorbell
Fuss-Free Installation and Connectivity
H2b comes with Wiegand interface input & output and Network interface of TCP/IP or RS485
Bluetooth Communication
Use Bluetooth to communicate easily with mobile app like i-Neighbour App and TimeTec Security App, for user information registration and setting up of devices
Simple Enrolment
Flash an admin card in front of FingerTec H2b and enroll away. User deletion is done the same way

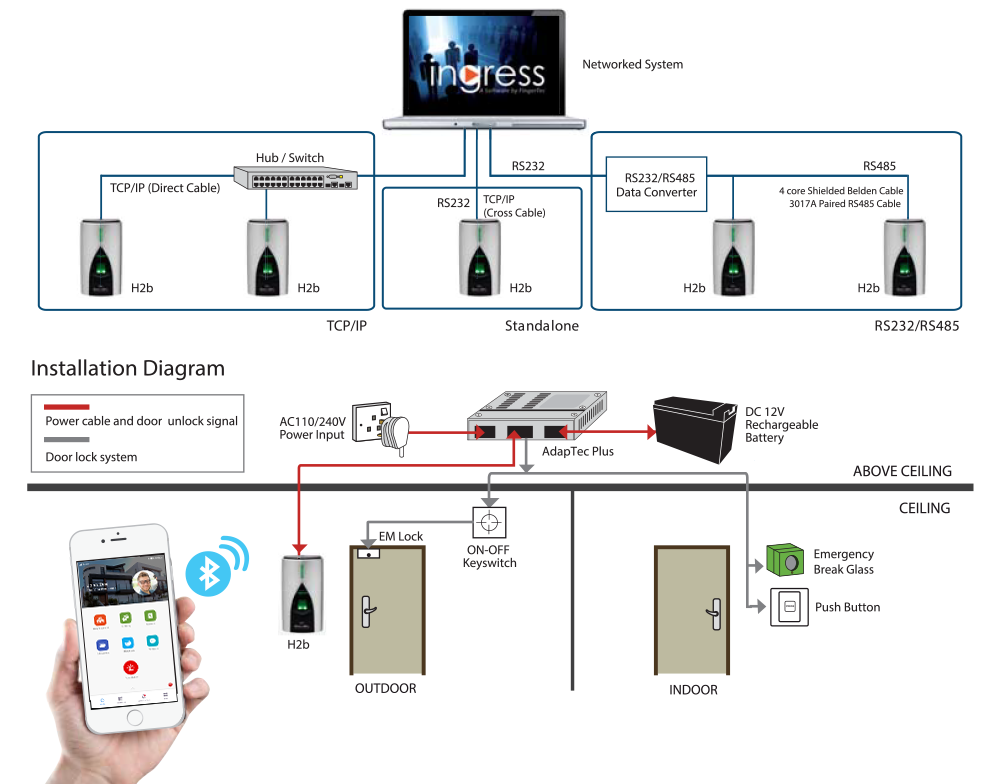

Layout Plan


Brochure :
User Manual :
Quick Start Guide :
Installation Guide :


MODEL H2b
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER Non coated optical scanner
MICROPROCESSOR 300 MHz
MEMORY 256 MB flash memory & 32 MB SDRAM
ALGORITHM BioBridge VX 9.0 / VX 10.0
PRODUCT DIMENSION (L X W X H), mm 78 x 50 x 150
STORAGE
• Fingerprint templates 1500
• Cards 10000
• Transactions 100000
ENROLLMENT & VERIFICATION
• Methods Fingerprint & card
• Recommended fingerprint per user ID 2
• Fingerprint placement Any angle
• Verification time (sec) < 1
• FAR (%) < 0.0001
• FRR (%) < 1
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz, RF output power (EN300-330) Yes
• MIFARE: MFIS50/S70, 13.56MHz Made to order
• HID: HID 1326, 26-bit, 125kHz Made to order
COMMUNICATIONS
• Method TCP/IP, RS485, USB disk
• Baud rates 9600, 19200, 38400, 57600, 115200
• Wiegand 26-bit input / output
• Bluetooth 4.2
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 12V 3A
MULTIMEDIA
• Voice Yes
ACCESS CONTROL
• EM lock driving output DC 12V 3A / relay output
• Alarm output NO
• Anti passback Yes
APP (ANDROID & IOS) TimeTec Security, i-Neighbour
VOICE LANGUAGE (TERMINAL) English (Standard), Arabic, Indonesian, Chinese Traditional / Simplified, Vietnamese, Spanish, Portuguese (Portugal), French, Persian.
Other languages are available upon request
