TimeTec QF Plus & BLE-16
TimeTec QF Plus & BLE-16
for Elevator Control
Brochure
Installation Guide
Overview
QF Plus also can be used for elevator access by pairing TimeTec BLE-16, via Bluetooth communication between users and QF Plus to reach designated floor inside an elevator car. The TimeTec BLE-16 is a Bluetooth Low Energy smart elevator controller that controls the designated floor mechanism once it received the command from QF Plus.

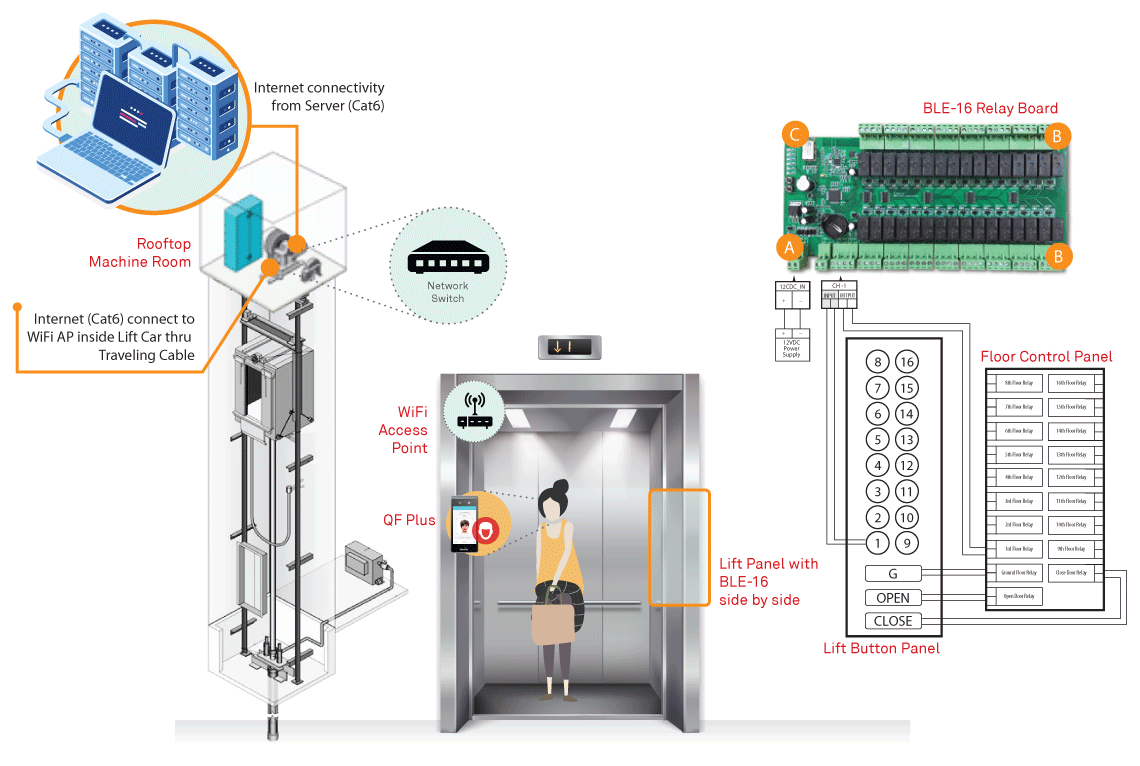

Elevator + TimeTec BLE16 Schematic
A
   The power input port. Use 12V DC 3A power supply to power up the BLE-16.
B
   The input and output slots to connect to the lift button panel and the floor control panel. Each channel is for one floor only.
Input to connect to individual button at the lift button panel.
Output to connect to the individual relay at the floor control panel.
C
   The Bluetooth receptor to receive command from mobile app and Bluetooth cards.

Note:
•  Please take note on the example of 1st Floor Button wiring to BLE16 CH1 and Lift Panel 1st Floor Relay. Modify ONLY buttons of the floors required to control
•  Do Not modify Ground Floor Button and Ground Floor Relay, reason being Ground Floor is mandatory accessible
•  Also, do not modify Open and Close Button for the same reason

The Mechanism of a QF Plus with Authentic QR Code

Everytime an admin approves or invites a visitor, the cloud server will generate an authentic QR code to be sent to the visitor immediately. No self-generated QR code is permitted to be used at a QF Plus. Whenever the visitor presents this QR code to a QF Plus, the information of an access permission based on time zone and access points contained in the QR Code will be relayed to a cloud server for a real-time authentication of an access. If the result returns true, the visitor will be given access via the QF Plus, whereby it will send the encrypted designated floor command to the TimeTec BLE-16. For every access activity happening via the QF Plus, the cloud server will record the access point, the date and time immediately, and it applies Antipassback rules by default instantaneously. It means that the same QR code must be scanned at the entry point of a QF Plus before it can be scanned for exit at the Exit point QF Plus. In case the visitor share the same QR code with one other person, that person cannot be using the same QR code to gain access once the visitor have used it. This anti passback rules is preventing unauthorised access by using duplicated QR Codes.

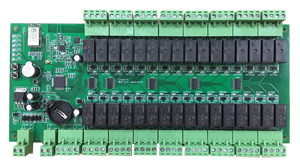

TimeTec BLE-16
Brochure
Installation Guide

SPECIFICATIONS TimeTec BLE-16
CHANNELS 16 FORM C Relay output,Fail-Safe bypass design
FLOORS 16 (extend by expansion board)
DIMENSION (L X W X H), mm 180 (L) x 231 (W) x 62 (H)
WEIGHING (KG) 1.7
POWER INPUT 9 ~ 12 VDC
WORKING TEMPERATURE (ºC) 20-80
HUMIDITY (%) 10-90
COMMUNICATION Dual BLE 4.0 & 4.2
BLUETOOTH ENCRYPTION 64-bit TimeTec Proprietary
LED INDICATOR Yes
TRANSACTION RECORDS Unlimited, stored in cloud server, local 1000 transactions
EVENT CAPACITY Unlimited
MOBILE OS Android 4.0.2 and above, iOS 8.0 and above
APP & CLOUD i-TimeTec, TimeTec Access, TimeTec VMS, i-Neighbour
LANGUAGE (APP & CLOUD) Arabic, Chinese Simplified, Chinese Traditional, English, Hindi, Indonesian, Malay, Nepali, Spanish, Thai, Turkish, Vietnamese. Other languages are available upon request.
TimeTec QF Plus
Brochure
User Guide
Installation Guide
SPECIFICATIONS TimeTec QF Plus
Surface finishing Acrylonitrile Butadiene Styrene (ABS)
Type of scanner 2MP Dual Camera
OS Android 8.1
CPU Quad-core, 1.5GHz
Memory RAM 2GB / ROM 16GB
Algorithm Face: BioBridge VX 9.0
Push Technology Yes
Dimensions 158 * 74 * 15.6mm
Templates, Transaction 10,000 face templates, 1,000,000 transaction
ENROLLMENT & VERIFICATION
Methods Face (1:N) and QR Code
Verification time (sec) Face < 1, QR Code < 1
FAR (%), FRR Face: < 0.01, Face: <0.1
COMMUNICATIONS
Wi-Fi 2.4GHz, 5GHz, 802.11a / b / g / n
Bluetooth 4.0
4G Wireless Broadband Yes
USB USB 2.0
GPS GPS / A-GPS
MULTIMEDIA
Voice Yes
Display 720 x 1280, IPS touch LCD
Photo ID Yes
Speaker 90DB (10cm distance)
Microphone 1m clear voice pickup
Short messaging Yes
Day light saving timer Yes
OPERATING ENVIRONMENT
Power 12V 2A
Operating Temperature -10°C - 50°C
Operating Humidity 20% - 80%RH
TIME ATTENDANCE
Work codes Yes
Fast transaction checking Yes
ACCESS CONTROL
Door Controller TimeTec BLE-2
EM Lock driving output DC12V relay output
Lock output type NO/NC
Antipassback Yes
Transaction records/Event capacity Unlimited, stored in cloud server
General
MOBILE OS Android 4.0.2 and above, iOS 8.0 and above
CLOUD software i-TimeTec, TimeTec Access, TimeTec VMS, TimeTec TA, i-Neighbour
CERTIFICATIONS
CE, FCC, RoHS
  Note: Specifications are subject to change without prior notice.
