TOPOGRAPHY

SURVEY & SITE INSPECTION (DRONE)


Deploying Unmanned Aerial Vehicle (UAV) and Data Analytic technology to deliver
highly cost-effective services for housing development project
Description
Depending on the complexity of site conditions and the accessibility of the areas and structures under observation, the construction works related to it such as site surveying, progress tracking, logistical planning and resource monitoring are time consuming, labor intensive, high-risk and not to mention highly costly, and rather ineffective. We provide professional UAV services that enable project owners to collect, store, combine and analyze high-resolution aerial images for site inspection and project tracking. Engineers, architects and project managers can now use highly accurate data to make faster and better decisions.

Pre-construction
› Base model generation for CAD designs
› Site conditions assessment
› Site surveying and measurements (distance, perimeter,volume, etc.)
› Physical and environmental hazards detection
On-going construction
› Inspection on hardly accessible and inaccessible areas
› Construction progress tracking and monitoring
› Earthwork and inventory measurement (stockpile, extracted materials, etc.)
› Construction assets monitoring (aggregates, materials, equipment, etc.)


Post-construction
› Comparison of actual vs planned construction work
› New fault or distress detection caused by construction work
› Neighbouring land impact surveying and assessment
› Final position and adequacy of all completed work surveying
Our solutions for the construction sector

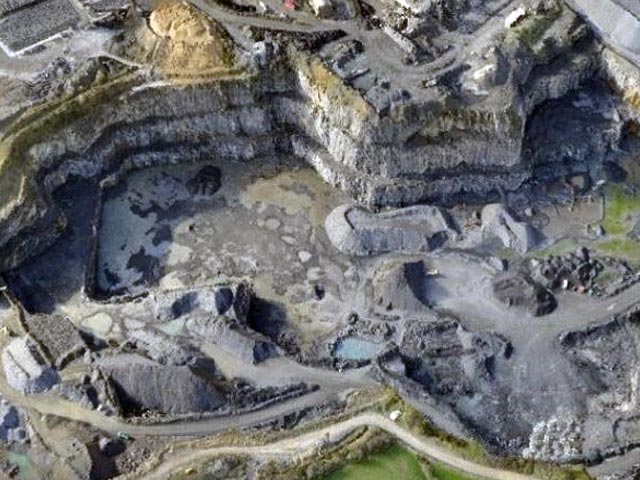

Mapping
› Digital Terrain Modelling (DTM) for height and elevation data of entire site
› Digital Elevation Modelling (DEM) for height and depth of entire site

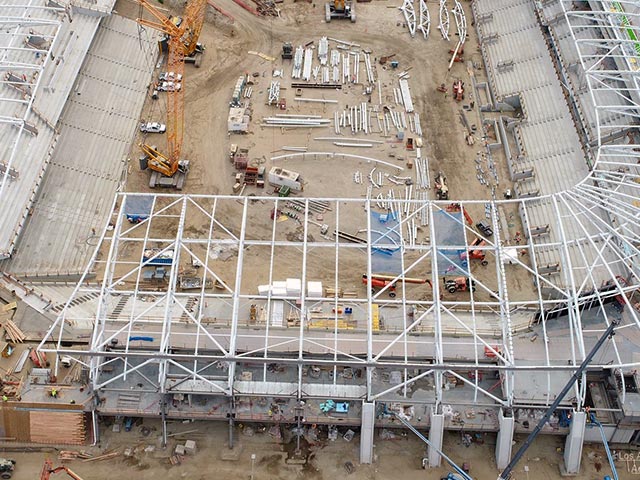

Volumetric analysis
› Excavated area and volume measurements
› Extracted stock piles and inventory volumetric calculations

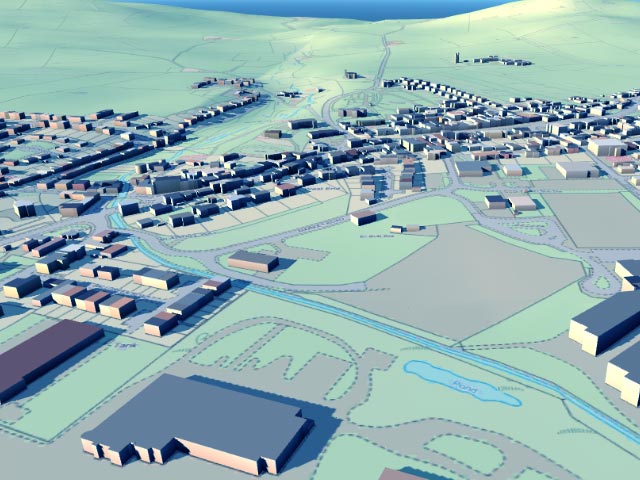

2D and 3D modelling
› High quality 2D maps for progress tracking and monitoring
› Interactive 3D view of different project phases

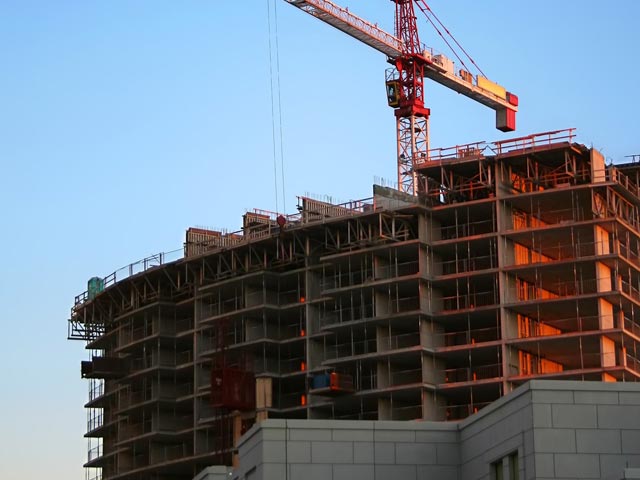

High resolution imagery
› Geo-tagged high-resolution images of entire site for fast situation assessment
› Live video streaming of high risk and complex operations

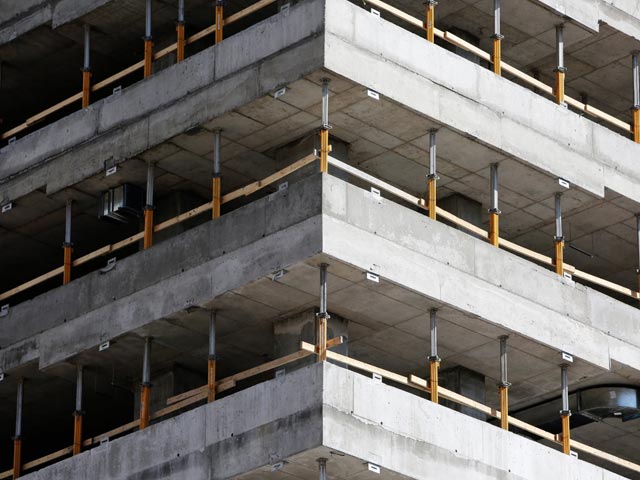

Close-up inspection
› Hardly accessible spot inspection
› Compliance and standard requirements inspection

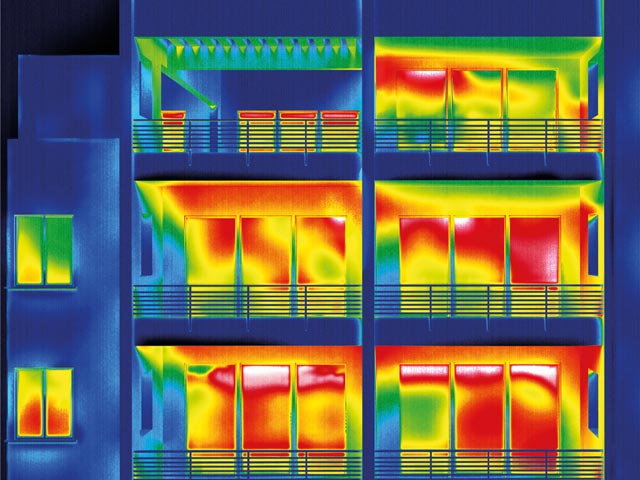

Thermal inspection
› Building insulations compliance inspection
› Heat loss detection analysis

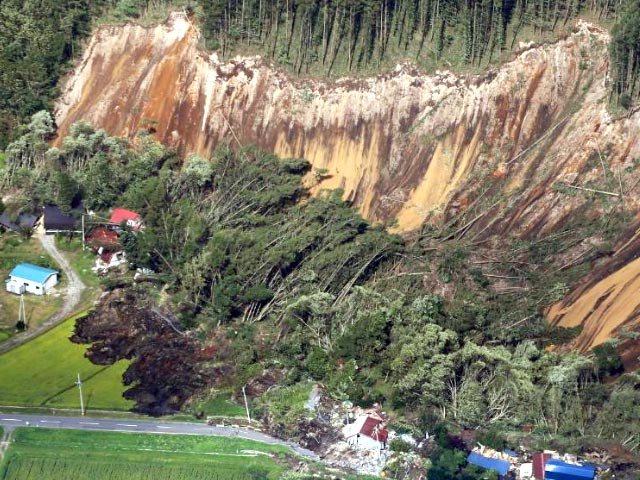

Landslide hazard monitoring
› Slope condition measurement and analysis
› Landslide risk assessment and insitu monitoring
Online cloud platform
› Cloud-based data analytics and management tool for overall project tracking
› Multiple user accessibility for timely exchange of information
DEVELOPER BENEFITS
Safety
› Improve personnel safety - Site inspectors get less exposure to construction hazards
› Enhance operational safety - On-site live monitoring of high risk and complex operations
Reporting
› Timely reporting to track progress better - Speed-up decision making
› Multitude of geo-tagged data - Effective project tracking through a single platform
Cost
› Higher precision UAV surveying at a lower cost - Faster and larger coverage than conventional methods
› Reduction of operation cost - More efficient and less operation shutdown
Resources
› Optimization of manpower and deployment - Less ground personnel for inspection, shorter notification time for UAV deployment
› Speedy adjustment of resources - Timely resource monitoring and tracking, enable efficient planning of material procurement
Smart Service for Earthwork Progress


STEP 1
SUBMIT REQUEST FORM
Our experienced team will contact you to understand your needs, evaluate the sites, and propose a suitable service package.
STEP 2
FLIGHT MISSION PLANNING AND DRONE OPERATIONS
We train your staff to conduct flight mission, operate drones, and manage data. Alternatively, you may engage our professional service team for drone operations.
STEP 3
UPLOAD DATA TO SECURE CLOUD SERVER
After the flight mission, you can directly upload the collected data to our secured cloud server. We will process the data, analyze results and generate report that suits your needs.
STEP 4
RECEIVE THE PROCESSED DATA AND ANALYSIS REPORT THROUGH ONLINE CLIENT PORTAL
You can retrieve the processed data and analysis report anytime, anywhere, through our online client portal. We will also provide consultancy services for result interpretation and further action planning.
