IP Telephony System


An IP Telephony System, also known as VoIP (Voice over Internet Protocol), helps improve business communication in several key ways:

HOW IP Telephony System
Helps to improve Business Communication


Cost Efficiency
  1. Lower call costs: Especially for long-distance and international calls, VoIP can reduce charges significantly.
  2. Unified network: Voice and data use the same IP network, eliminating the need for separate infrastructure.

Scalability & Flexibility
  1. Easily scalable: Add or remove users without investing in new physical phone lines.
  2. Work from anywhere: Employees can make/receive calls using mobile apps or softphones, supporting remote work and mobile teams.

Advanced Features
  1. Call forwarding, voicemail-to-email, auto-attendant, call recording
  2. Video conferencing and team messaging
  3. CRM integration for better customer interaction

Improved Collaboration
  1. Unified communication tools (voice, video, messaging) in a single system foster real-time collaboration across departments and locations.

Better Reliability and Redundancy
  1. IP telephony systems can be cloud-based or hybrid, offering failover options and disaster recovery to maintain communication during outages.

Enhanced Customer Experience
  1. Faster call routing, intelligent IVRs (Interactive Voice Response), and seamless call handling improve service quality and responsiveness.
Summary
IP Telephony modernizes business communication, reducing costs while enhancing flexibility, scalability, and customer service quality. It’s a cornerstone for digital transformation and hybrid work environments.

PRODUCTS

IP PBX   Enterprise IP Phone   Digital VoIP Gateway
IP PBX

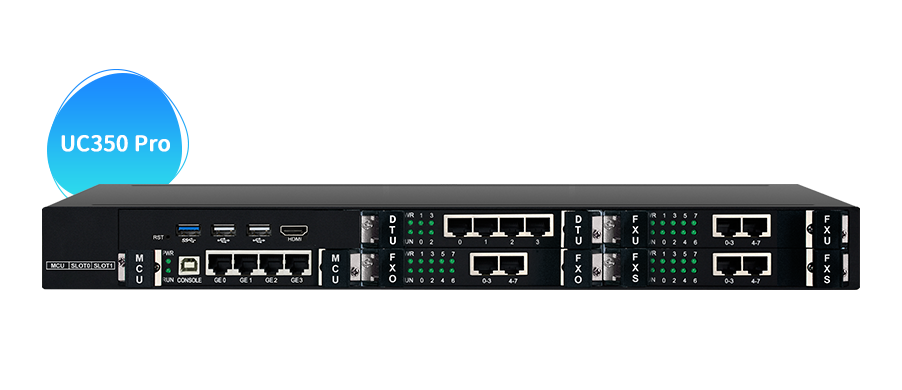

UC350/UC350 Pro
High-end IP PBX 
UC350 Series IP PBX is a new generation IP PBX for large capacity unified communication solutions. Based on powerful hardware platform, UC350 Series IP PBX includes UC350 and UC350 Pro. UC350 and UC350 Pro support 1,000/5,000 extensions and 100/500 concurrent calls which is integrated voice, video, paging, fax, conference, recording and other useful functions. It also provides four slots which are able to install E1/T1 boards, FXS and FXO boards by hot-plug mode, so that it can be flexibly configured and combined according to the actual use scenarios. It is suitable for helping to build the telephony system of large and medium-sized enterprises, and can meet the branch office needs of large group enterprises and government agencies, helping enterprises and industry customers to establish a convenient and efficient IP telephone system.

Modular Design

Auto Provisioning

Intelligent IVR

Hot Standby

IP Firewall

TLS/SRTP

High Performance

  1. Max to 5,000 SIP extensions
  2. Max to 500 concurrent calls
  3. Max to 32 FXS/FXO ports, 16S16O or 16 E1/T1 ports
  4. 2/4 GE ports for efficient data forwarding
  5. New hardware architecture with powerful CPU and DSP

High Reliability

  1. Hot standby: dual-server redundancy without downtime
  2. 1+1 redundant power supplies
  3. Modular design, hot-swappable and customizable telephony boards (8FXS, 8FXO, 4FXS4FXO, 1/2/4E1s)
  4. Flexible routing, PSTN failover, load balance

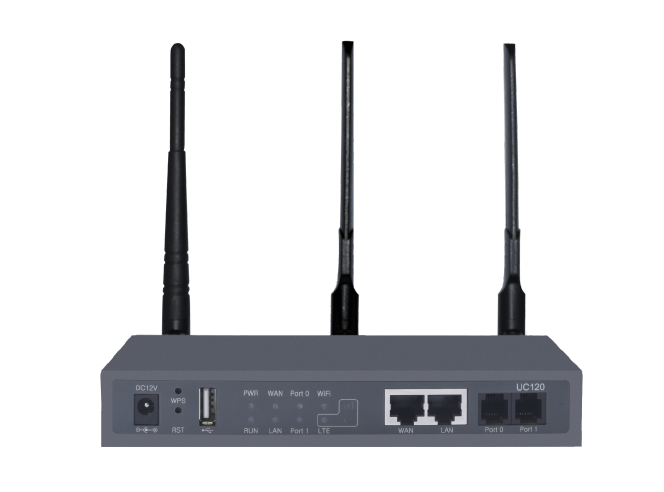

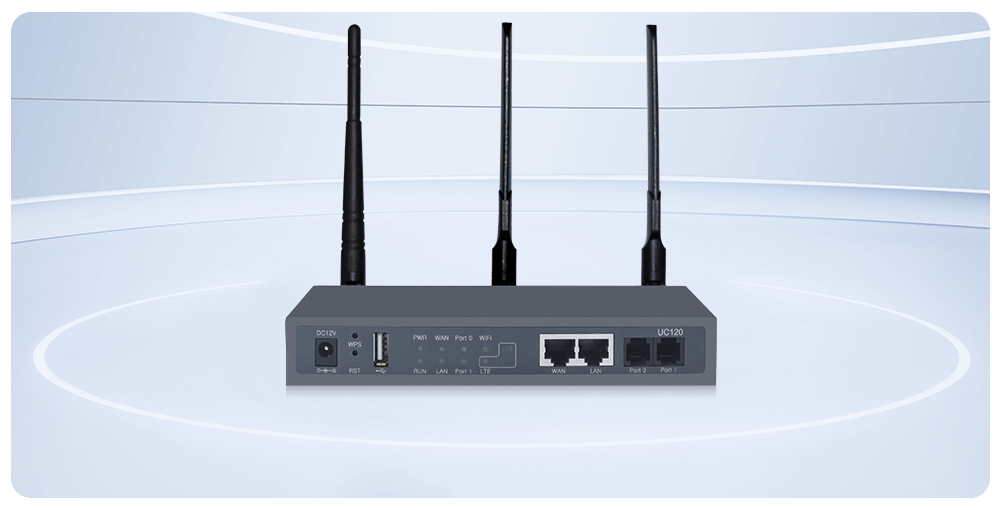

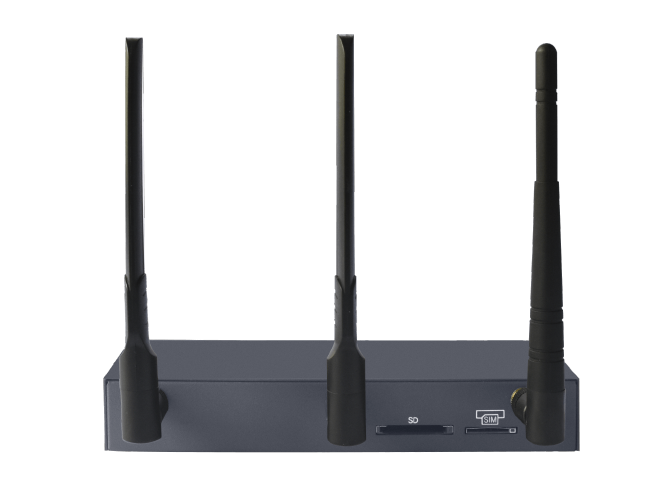

UC120
VoIP PBX
UC120 is a VoIP PBX phone system designed for small and medium sized enterprises to boost productivity, improve efficiency and reduce telephony and operational cost. As a converged platform offering diverse connectivity to all networks like FXO (CO), FXS, GSM/VoLTE and VoIP/SIP, supporting up to 60 users, UC120 allows businesses take advantage of state-of-art technology and enterprise class features with small investments, delivers high performance and superior quality to meet the communication needs of today and tomorrow.

4G LTE

Multi-level IVR

Voicemail

Auto-provision

Recording

Wi-Fi

Small Size, Big Potential

Max SIP Extensions 60
Max Concurrent Calls 15
Analog Ports 2
  Optional
4G LTE/GSM Yes

Cost-saving Phone System for SMEs

  1. Affordable Upfront System: Cost-effective IP PBX and IP phones. No annual licensing fees or recurring fees.
  2. Slashed Communication Cost: Free internal calls and low-cost external calls via SIP trunks.
  3. Reduce Installation & Maintenance Cost: Easy to use, manage and maintain, remote management and remote upgrade in bulk.
  4. Retain Old Legacy Equipment: Retain your legacy equipment like analog phones, fax and legacy PBX using VoIP gateways.
Enterprise IP Phone

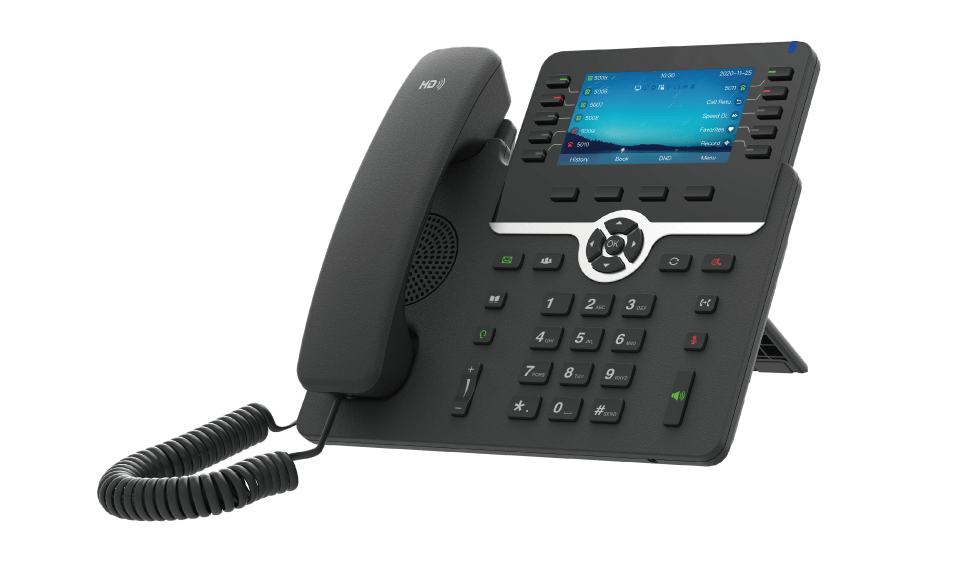

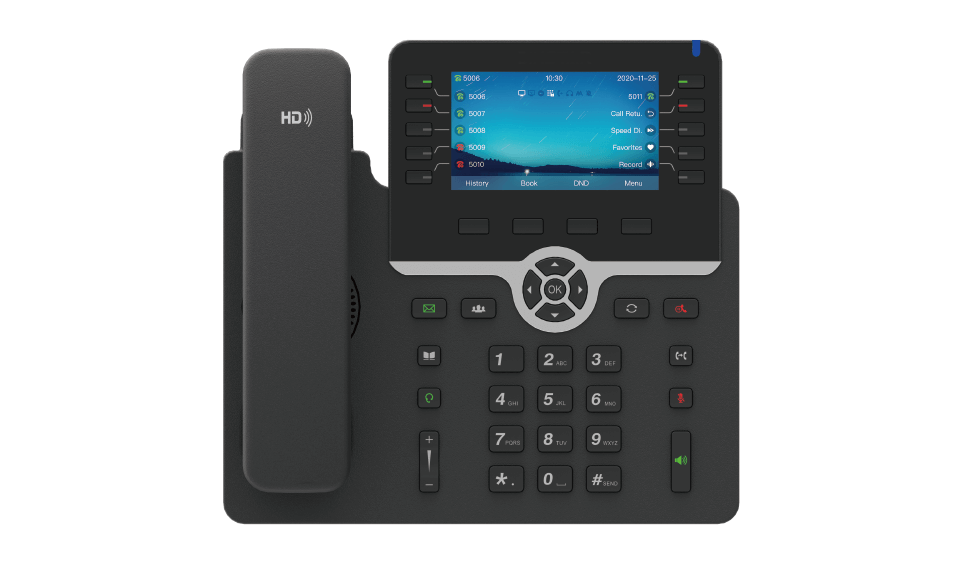

C66G/C66GP
High-end Business SIP Phone
C66G/C66GP is a versatile HD SIP phone designed for high-end business environments. With its elegant appearance and excellent performance, it fits well in various settings. The 4.3”480 x 272-pixel graphical LCD with backlight offers clear visual effects. The phone delivers superior HD voice quality and multiple system functions to meet diverse user needs. Equipped with dual Gigabit Ethernet ports, the C66 is easy to install, configure, and use. It supports 20 SIP accounts and 6-way conferencing, seamlessly integrating with IP PBX systems to provide rich business functionality.

4.3”Graphic LCD

20 SIP Accounts

50 Line Keys

6-way Conference

Wi-Fi & Bluetooth Dongle

HD Voice

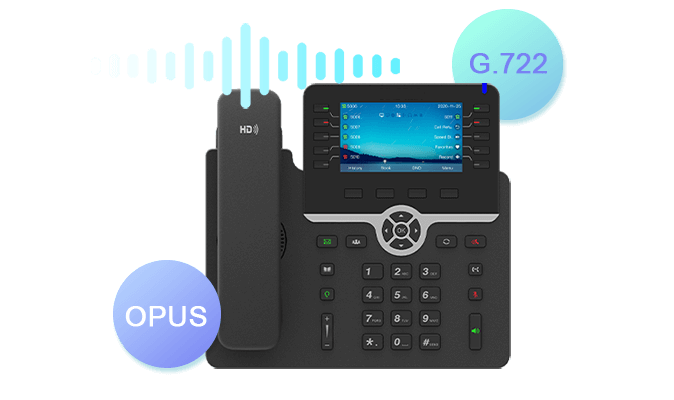

High-definition Audio

  1. Full duplex speaker and microphone
  2. Digital signal processor (DSP)
  3. Wideband codec: G.722, OPUS-WB
  4. Echo cancellation/Dynamic jitter
  5. Voice activity detection(VAD)
  6. Comfort noise generation(CNG)

6-way Conferences

C66G/C66GP IP Phone facilitates 6-way audio conferencing, allowing the conference organizer to invite up to 5 participants. This enhances collaboration across various departments or organizations, improving efficiency.

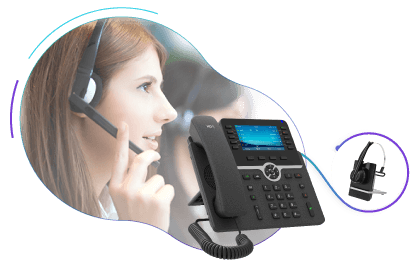

Support 3rd-party EHS Headsets

C66G/C66GP IP Phone is compatible with third-party EHS wireless headsets (Plantronics, Jabra, and Sennheiser), making it an ideal choice for call center professionals. This feature allows employees to multitask while engaged in audio communication, significantly enhancing overall work efficiency.

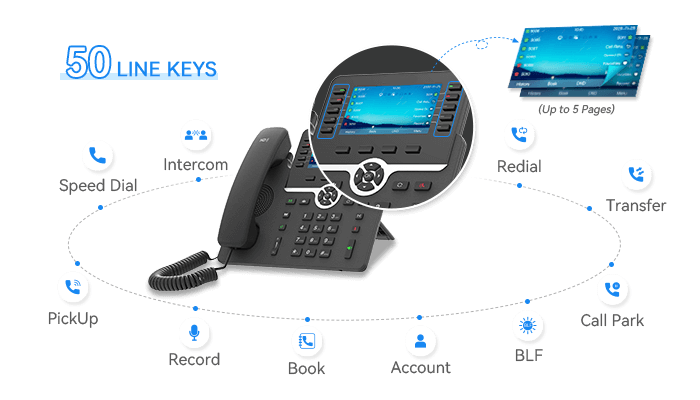

Multiple Programmable Keys

Featuring 50 Line Keys, 4 Soft Keys, and 6 Function Keys, all fully programmable, C66G/C66GP IP Phone provides one-touch access to frequently used features like speed dialing, call transfer, and conference calling, boosting productivity by enabling users to customize functions, ensuring efficient and personalized usage.

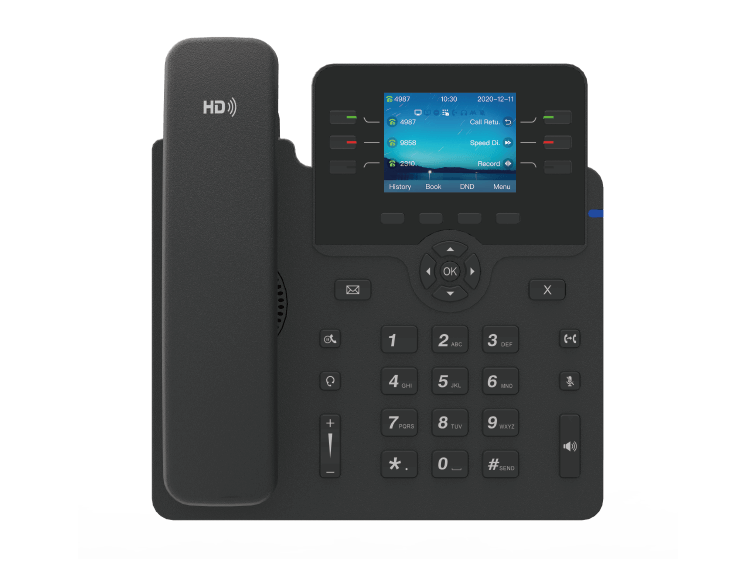

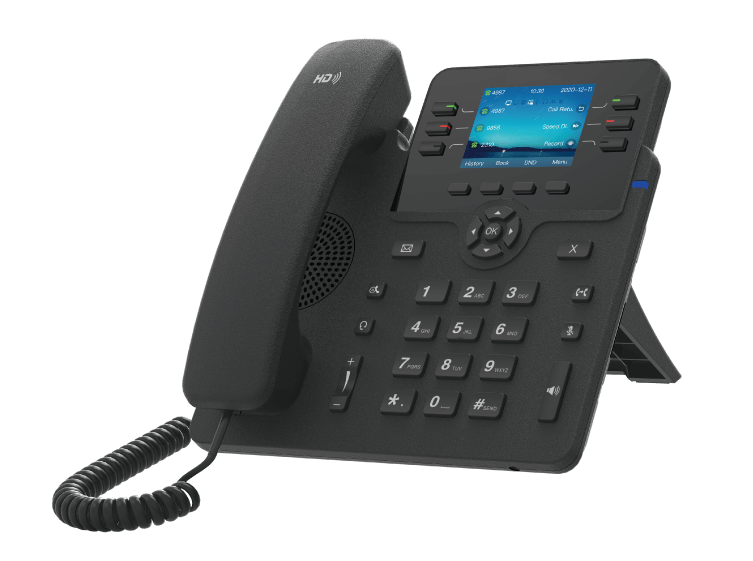

C63G/C63GP
Color Screen IP Phone
The C63G/C63GP is a versatile HD IP Phone tailored for SMEs. It is easy to use, cost-effective, and suitable for diverse environments. Featuring a 2.8”240x320 pixel graphical LCD with backlight, it delivers excellent HD voice quality and a variety of system functions to meet the needs of SMEs, call centers, and industry users. The C63G/C63GP is simple to install, configure, and operate, supporting 6 SIP accounts and 5-way conferencing. It seamlessly integrates with IP PBX systems to deliver a rich set of business functions.

2.8”Graphic LCD

6 SIP Accounts

30 Line Keys

5-way Conference

PoE

HD Voice

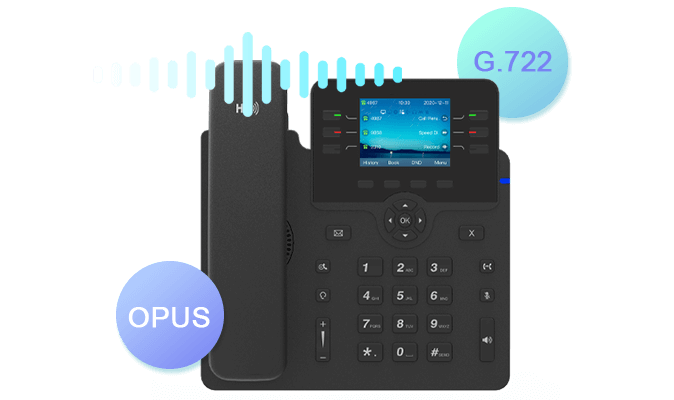

High-definition Audio

  1. Full duplex speaker and microphone
  2. Digital signal processor (DSP)
  3. Wideband codec: G.722, OPUS-WB
  4. Echo cancellation/Dynamic jitter
  5. Voice activity detection(VAD)
  6. Comfort noise generation(CNG)

5-way Conferences

C63 Series IP Phone facilitates 5-way audio conferencing, allowing the conference organizer to invite up to 4 participants. This enhances collaboration across various departments or organizations, improving efficiency.

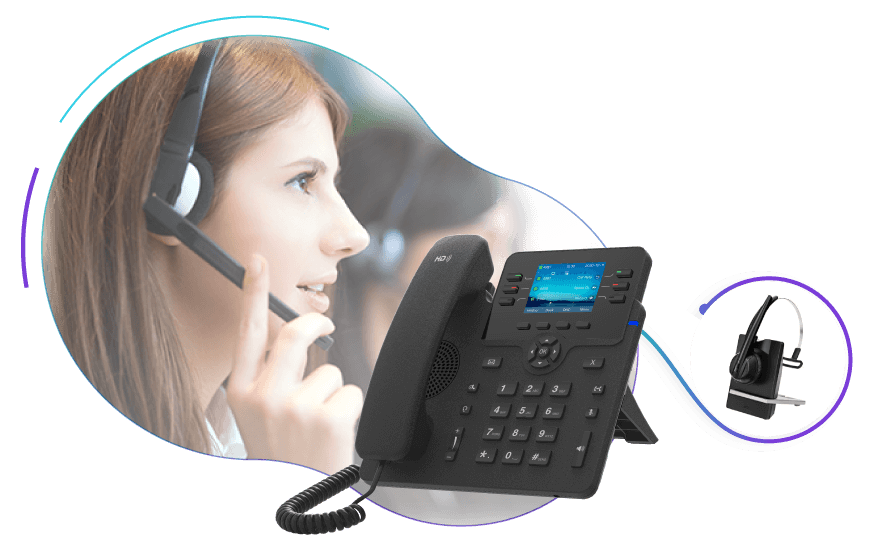

Support 3rd-party EHS Headsets

C63 Series IP Phone is compatible with third-party EHS wireless headsets (Plantronics, Jabra, and Sennheiser), making it an ideal choice for call center professionals. This feature allows employees to multitask while engaged in audio communication, significantly enhancing overall work efficiency.

Multiple Programmable Keys

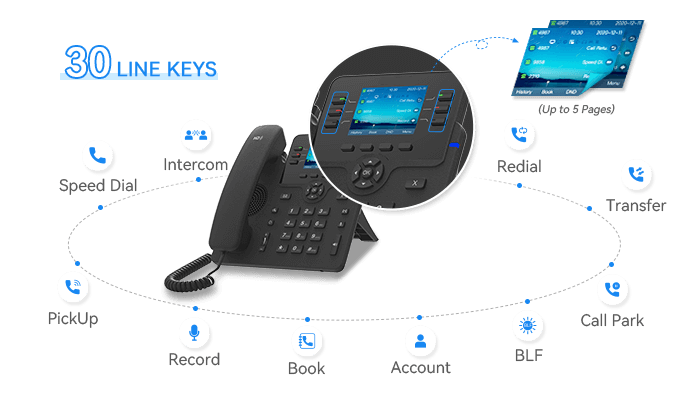

Featuring 30 Line Keys, 4 Soft Keys, and 6 Function Keys, all fully programmable, C63G/C63GP IP Phone provides one-touch access to frequently used features like speed dialing, call transfer, and conference calling, boosting productivity by enabling users to customize functions, ensuring efficient and personalized usage.

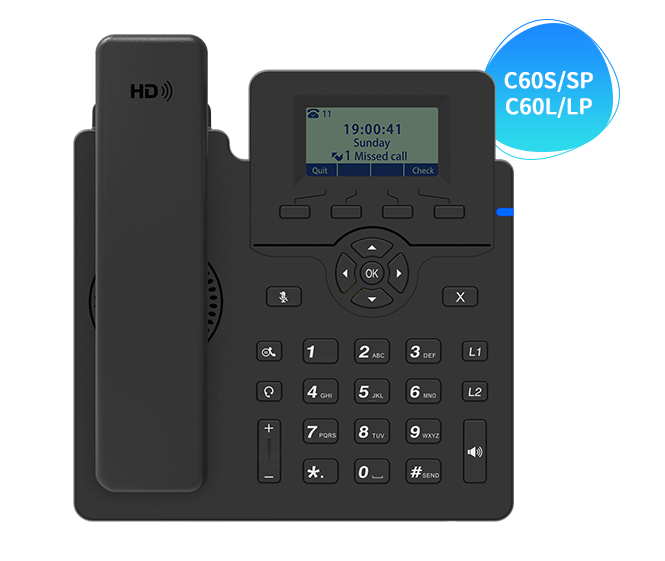

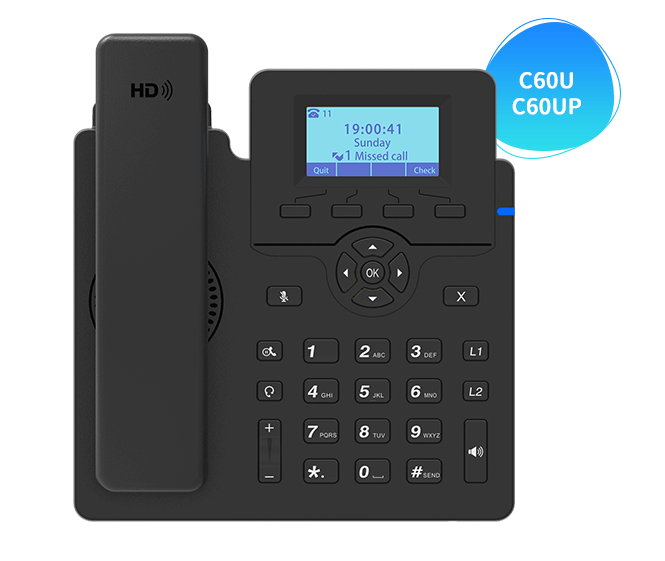

C60 Series
Entry Level IP Phone
C60 Series IP Phone is based on high innovative SIP technology, which is ideal for all kinds of business communication. It integrates with 132x64-pixel graphical LCD, elegant and intuitive user interface, which indicate you can enjoy good user experience.

2.3”Graphic LCD

2 SIP Accounts

2 Line Keys

EHS Support

PoE

HD Voice
Models C60U C60UP C60S C60SP C60L C60LP
Backlight Yes Yes No No No No
Ethernet Port 2 2 2 2 1 1
PoE No Yes No Yes No Yes

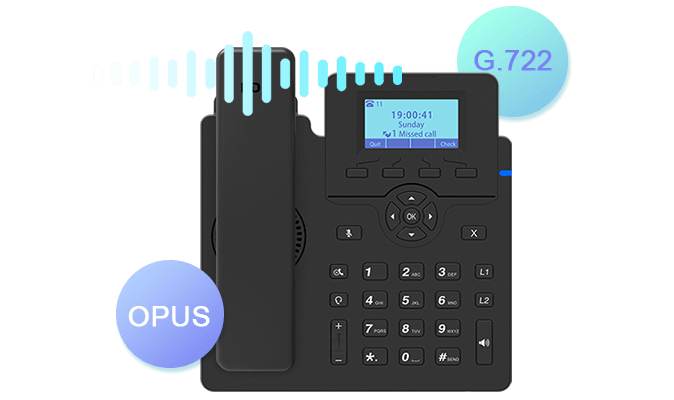

High-definition Audio

  1. Full duplex speaker and microphone
  2. Digital signal processor (DSP)
  3. Wideband codec: G.722, OPUS-WB
  4. Echo cancellation/dynamic Jitter
  5. Voice activity detection (VAD)
  6. Comfort noise generation (CNG)

5-way Conferences

C60 Series IP Phone facilitates 5-way audio conferencing, allowing the conference organizer to invite up to 4 participants. This enhances collaboration across various departments or organizations, improving efficiency.

Support 3rd-party EHS Headsets

C60 Series IP Phone is compatible with third-party EHS wireless headsets (Plantronics, Jabra, and Sennheiser), making it an ideal choice for call center professionals. This feature allows employees to multitask while engaged in audio communication, significantly enhancing overall work efficiency.

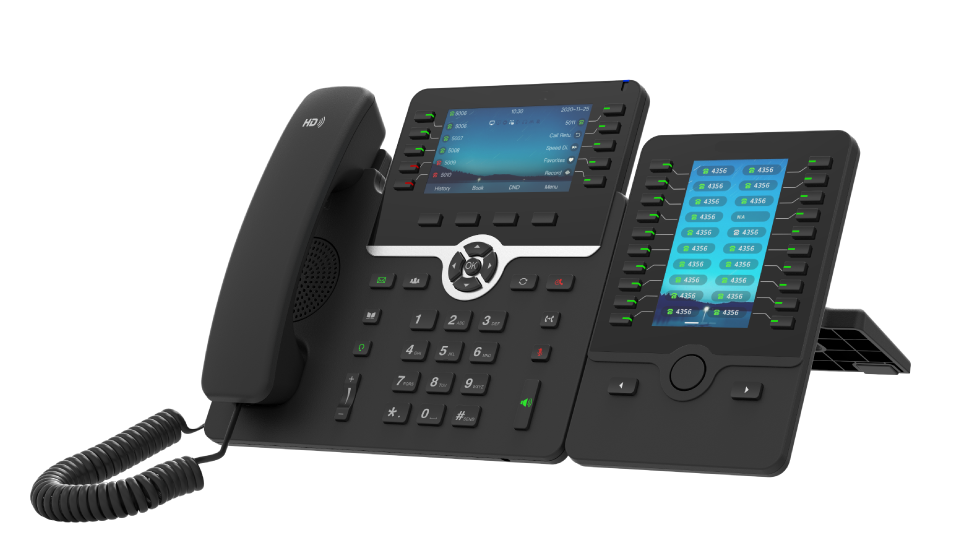

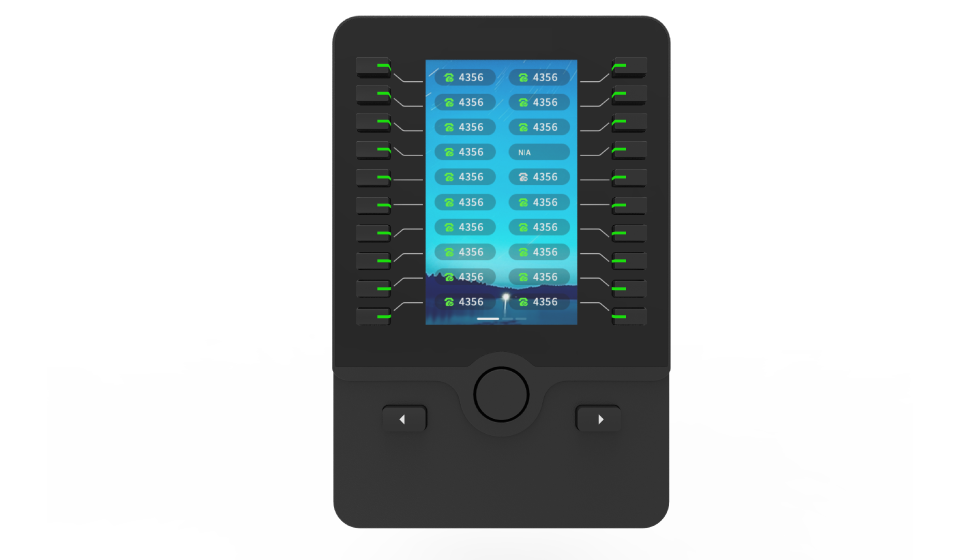

Expansion Module DXP60
Color-screen Expansion Module
DXP60 expansion module is dedicated to expanding the functionality and enhancing the flexibility of SIP phones. The DXP60 features a 4.3-inch pixel color display screen with backlight, providing users with a rich visual experience. It supports 20 physical keys with dual-color LEDs, offering 3 display pages and up to 60 programmable keys. The DXP60 is suitable for receptionists, administrative assistants, call center agents, advanced users, and managers who need to regularly monitor and manage a large number of calls.

4.3-inch Color Screen

60 Line Keys

3 Pages Display

2 Adjustable Angles

Plug-and-play

Up to 3 Modules Daisy-chain

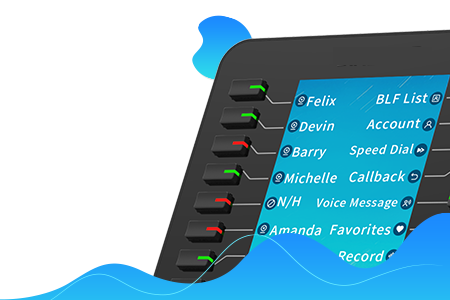

60 Line Keys with Rich Functions

  1. 20 physical keys with 2 colour LEDs
  2. All keys' functions can be assigned on IP Phone
  3. Wideband codec: G.722, OPUS-WB
  4. Speed dial, direct dial, BLF/BLA, call transfer etc
  5. The LEDs indicate the call and presence status

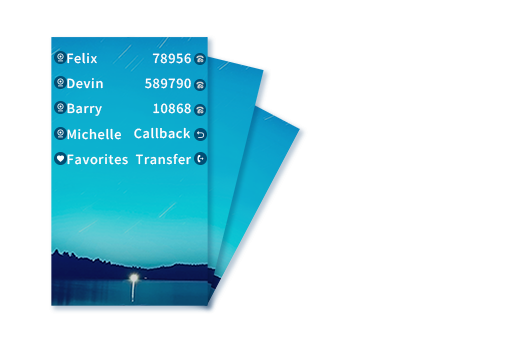

4.3-inch Color Screen

  1. 272 x 480-pixel colour display with backlights
  2. 3 pages display with user-friendly interface
  3. Color icons for different functions

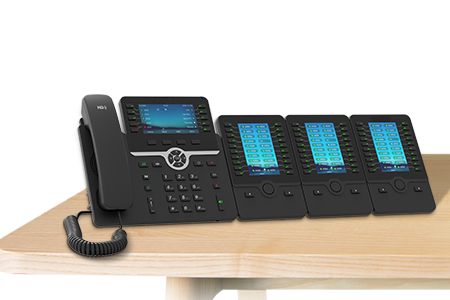

Up to 3 Modules Daisy-chain

  1. Connect up to 3 DPX60 expansion modules to IP Phone C66/C64/C63
  2. Ideal for receptionists, administrative assistants, contact center employees
  3. Effortlessly manage contacts and handle numerous calls seamlessly
Digital VoIP Gateway

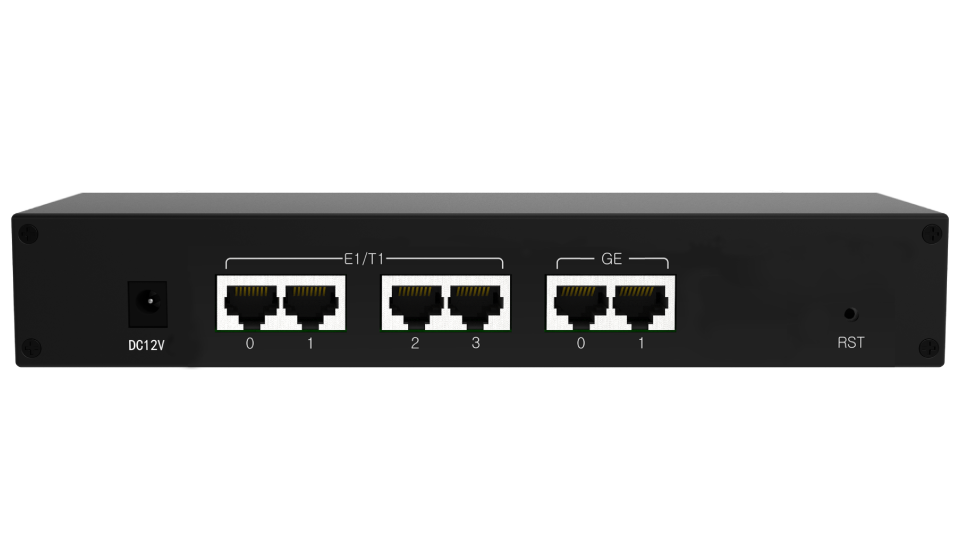

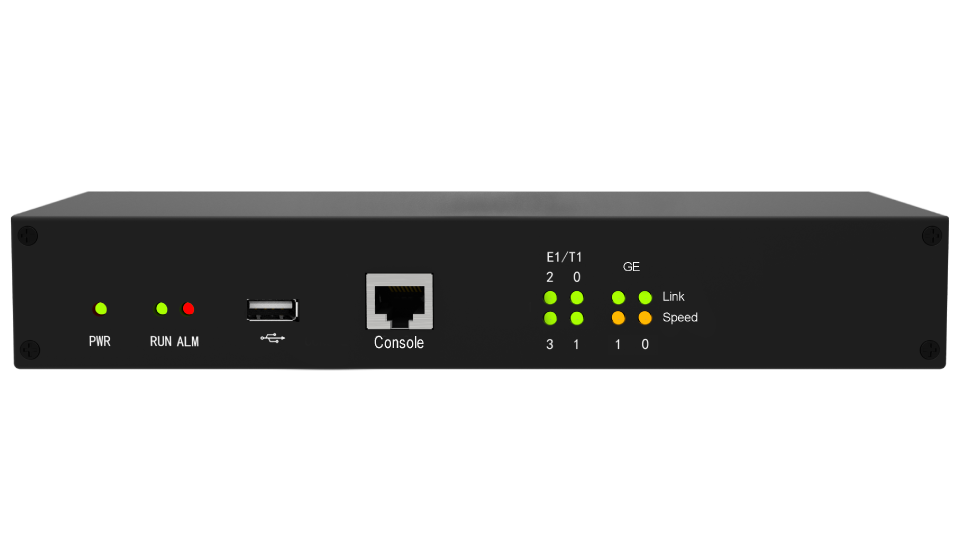

MTG 200
Cost-effective VoIP Trunk Gateway
MTG200 series Digital VoIP Gateways with 1/2 ports E1/T1 simply migrate your legacy PSTN networks (legacy PBX or E1/T1 service providers) , to VoIP network. Only small investment, you can enjoy the real benefits of VoIP, and retain your PSTN connectivity. It is a compact box designed for SMEs and open-source market, fully compatible with Asterisk / Elastix / Trixbox / Freeswitch and mainstream VoIP platform. With support of ISDN PRI / SS7 / R2 MFC, integrating with your legacy PBX or PSTN network is also so easy.

E1/T1

T.38/T.30

PRI

SS7

NGN/IMS

SNMP

Cost-effective VoIP Trunk Gateway for SMEs

  1. 1/2 ports E1/T1
  2. Flexible routing
  3. Multiple SIP trunks
  4. Fully compatible with Asterisk, FreeSWITCH and mainstream VoIP platforms

Rich Experiences on PSTN Protocols

  1. ISDN PRI
  2. ISDN SS7 (optional)
  3. R2 MFC
  4. T.38 and Pass-through fax
  5. Support modem and POS machines
  6. Legacy PBXs / Service providers' PSTN networks
